Miller ArrowFX 5 Fluid Head (1080)

The Miller ArrowFx 5 follows in the tradition and reputation of the world-renowned Arrowx series. The all-new ArrowFx 5 is designed to be used with camera and lens data to enable augmented and virtual effects in real time video production.

The ArrowFx 5 is designed to be integrated with 3rd party remote control pan and tilt heads or 3rd party graphics systems.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalances system, the ArrowFx 5 delivers the flexibility, speed of set up and accuracy of shot required by modern production methods..
The robust, high resolution magnetic encoders integrated into the fluid head, precisely monitor and communicate, in real time, the positioning of the pan and tilt mechanisms along their respective axis.

Miller ArrowFx 5 comes with a three year warranty, endorsing the reliability and “THE RIGHT FEEL” that are the hallmarks of every Miller product.

Features

• Designed for AR/VR systems
• Pan resolution 1.6 million counts per rev
• Tilt resolution 1.0 million counts per rev
• Removable encoder housing
• Wide payload range 2-21kg (4.4-46.2lbs)
• 7 selectable drag positions (pan and tilt) + 0
• 16 position CB Plus™  counterbalance system
• Quick release, 120mm sliding camera platform with standard camera plate (euro)

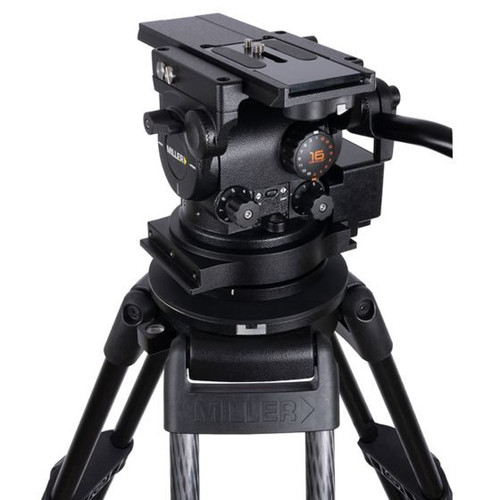

• Modular base allows for D100 bowl (incl.) or D150 bowl (opt.) Mitchell base (Opt.) (pictured)
• Optional second pan handle mount
• Side mounting points for viewfinders and accessories

​
