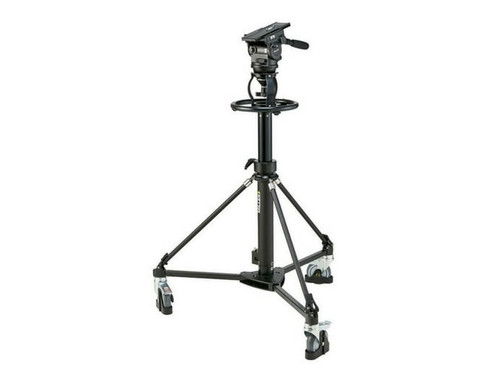

Miller Combo Live Ped & Dolly Pedestal (3320)

Miller Combo Live Ped & Dolly Pedestal (3320)

£5,960.00 (ex VAT)
£7,152.00 (inc VAT)
SKU: 3220

Current Stock:

Availability: Available in 3-5 working days
Adding to cart… The item has been added

Miller Combo Live Ped & Dolly Pedestal (3320)

  • The Miller Live Pedestal series
  • Offers light weight portability with air adjustable column system
  • Provides a precise-smooth low noise in shot 450mm (17.7") stroke for maximum payloads up to 30 kg (66Ibs)
  • Sturdy construction delivers maximum stability with reliable and simple to use features
  • High performer offering perfect option for live broadcast studios looking for a versatile pedestal that punches above its weigh
  • Easily disassemble for transportation purposes

​

  • Compact and portable with carry handle for column & dolly
  • Simple and easy to setup and use with column tension control and safety lock.
  • Air adjustable column system for quick payload balancing
  • Precise-smooth low noise in shot column with 450mm (17.7") stroke
  • Independent dolly wheel axle brake system eliminates wheel tyre indents
  • Multiple wheel positions for linear or radius dolly tracking
  • 125mm dual ball bearing wheels for quick swivel-turn action
  • Centre hub locking columnwith adjustable spider arm supports
  • Steering wheel diameter 294mm (11.6")
  • Dolly tracking width 964mm (38")
  • Sturdy adjustable cable guards
  • Portable hand pump with pressure gauge
Weight Total: 18.5kg (40.7lbs)
Weight Dolly: 8.5kg (18.7lbs)
Weight Column: 10.0kg (22.0lbs)
Payload range(column): 30.0kg (66.0lbs)
Column extension: 450mm (17.7")
Support extension: 430mm (16.9")
Min height: 820mm (32.3")
Max height: 1700mm (66.9")
Tracking width: 964mm (38.0")
Steering wheel diameter: 294mm (11.6")
Mounting base: Bowl type
Bowl diameter: 100mm (3.9")
Wheel diameter: 125mm (4.9")
Transit width (pedestal): 294mm (11.6")
Transit length (pedestal): 820mm (32.3")
Transit width (dolly): 694mm (27.3")



  • Pedestal
  • Miller Studio Dolly with Cable Guards (481)
  • Pan Handle - telescopic with clamp (694)
