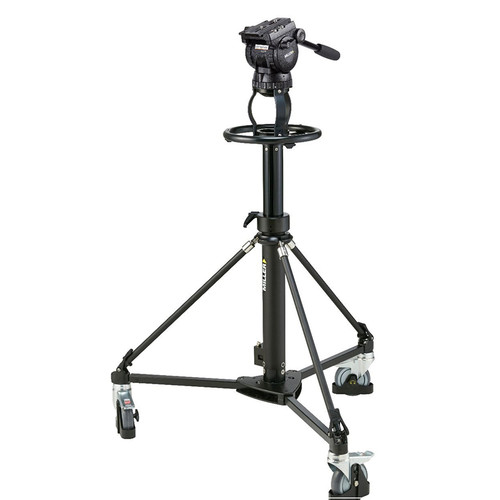

Miller CX14 Combo Live 30 Pedestal

Miller ArrowX 5 Combo Live Pedestal System

£8,513.00 (ex VAT)
£10,215.60 (inc VAT)
SKU: Miller CX14 Combo Live 30 Pedestal 3800

Current Stock:

Availability: Available in 3-5 working days
Adding to cart… The item has been added

Miller 3800 CX14 Combo Live 30 pedestal offers light weight portability employing an air adjustable column system that delivers perfect camera balance with a height range of 972mm (38.2") up to 1537mm (60.5") with precise, smooth, low noise in-shot 450mm (17.7") elevation stroke for payloads 0-14kg (0-30.9lbs).

5 + 0 selectable pan-tilt fluid drag positions make CX14 is designed for the creative professionals needing a stable, higher capacity solution, it is capable of balancing from a broadcast down to a DSLR camera.

Dual ball bearing wheels individually fitted with axial brakes deliver even and smooth effortless movement, featuring multiple wheel locking positions for linear or radius dolly tracking.

With its sturdy construction it delivers maximum stability with reliable and simple to use features.

This makes the Combo Live 30 Pedestal series a high performer offering perfect option for live broadcast studios looking for a versatile pedestal that punches above its weight.

​

  • 5 selectable positions of fluid pan and tilt drag + 0.
  • 16 position CB Plus™ counterbalance system.
  • Wide payload range 0-14.0kg (0-30.9lbs).
  • Wide height range 972mm (38.2”) up to 1537mm (60.5”).
  • Precise, smooth and low noise In-shot column with 450mm (17.7”) stroke.
  • Air adjustable column system for quick payload balancing.
  • Independent dolly wheel axle brake system eliminates wheel tyre indents.
  • Multiple wheel positions for linear or radius dolly tracking.
  • 125mm (4.9”) dual ball bearing wheels for quick swivel-turn action.
  • Centre hub locking column with adjustable spider arm supports.
  • Steering wheel diameter 294mm (11.6”).
  • Dolly tracking width 970mm (38.2”).
Payload Range 0-14.0kg (0-30.9lbs)
Weight 22.5kg (49.6lbs)
Height Range 960-1525mm (37.8-60.0”)
Mounting Base Ø100mm (3.9") ball levelling
Column In-Shot Stroke 450mm (17.7")
Steering Wheel Diameter Ø294mm (11.6")
Tracking Width 970mm (38.2")
Wheel Diameter Ø125mm (4.9")
Components:
1097 CX14 fluid head
696 2 x Pan handle - telescopic with clamp
3220 Combo Live 30 pedestal
