3770 CX14 Toggle 2 Stage Alloy
Current Stock:

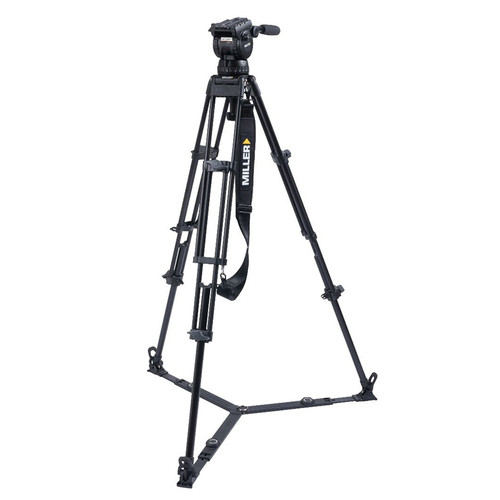

The 3770 CX14 Toggle 2-stage (alloy) tripod system combines with award winning CX14 fluid head and cost-effective yet speedy 100mm 402 Toggle tripod with above ground spreader is capable of balancing from a broadcast down to a DSLR camera, thanks to CB PlusTM technology and Miller's precision fluid drag system. Matched with the 2-stage Toggle (alloy) tripod and above-ground spreader to yield a large height range 553-1723mm (22-68"), offers positive leg toggle locks and the versatility of using the system across all terrains.
CX14 employs CB Plus™ technology providing 16 positions of counterbalance, 5+0 settings of Miller's fluid pan and tilt drag. Perfect for payloads to 0-14.0 kg (0 - 30.9 lbs) and with 60mm of camera plate travel, enabling you to match your camera configuration to any shot.
Payload Range
0-14.0 kg (0 - 30.9 lbs)
Weight
6.9kg (15.2lbs)
Height Range
553-1723mm (22-68")
Transport Length
843mm (33.2")
Counterbalance Positions
16 selectable positions (15+0)
Pan Tilt Drag
5 selectable fluid drag positions + 0
Pan Tilt Locks
Positive lock calliper brake system
Tilt Range
+90° / -75°
Pan Range
360°
Camera Platform
Quick release, side load camera plate
Sliding Range
60mm (2.4”)
Mounting Base
Ø100mm (3.9") ball levelling
Height Above Bowl
150mm (6.0")
Illuminated Controls
Bubble level
Pan Handle
Fixed 390 mm (15.4”)
Temperature Range
-40° to +65°C (-40° to +150°F)
Leg Extension
2-stage
Lock Type
Toggle
Leg Material
Alloy
Components
1097
CX14 fluid head
402
Toggle 2-stage tripod (alloy)
508
Above ground spreader
550
Rubber feet (set of 3)
679
Pan handle - fixed with clamp
554
Shoulder strap (padded)
3514
Softcase 2-stage
